Using Grass Collector

1. Push down mower engagement switch to stop mower blades.

2. CAUTION: Avoid Injury! Do not attempt to unplug attachment with machine running.

   • Rotating blades are dangerous. Shut off the engine and remove the key before getting off the seat to inspect the machine and attachment.
   • Thrown objects can cause serious injury. Make sure all machine parts are stopped before raising hopper top or removing chutes.



   NOTE: Do not engage mower until grass collector has been emptied.

   Drive to dumping location, stop tractor and lock the park brake.

3.
   MXT014602-UN-02JUN15

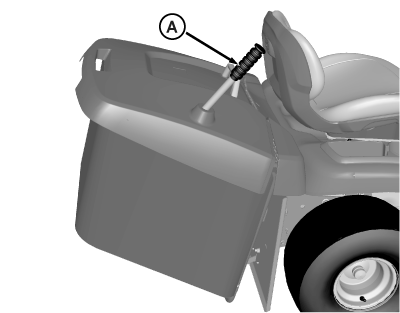

   Extend handle (A) and pull forward to rotate grass collector open.

---




4. Drive forward away from grass pile to empty grass clippings.

5. Push rearward on handle until collector locks in the closed position. Push down on handle to place in lowered position.
