Adjusting Grass Collector Full Sensor

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   MXT014622-UN-02JUN15

   Use two handles (A) to remove hopper assembly (B).

---




3. NOTE: There are seven sensitivity settings for adjusting the hopper tilt switch.

   NOTE: There are detent settings for each position so each position will seat into place as you are moving lever.


   MXT014605-UN-03JUN15

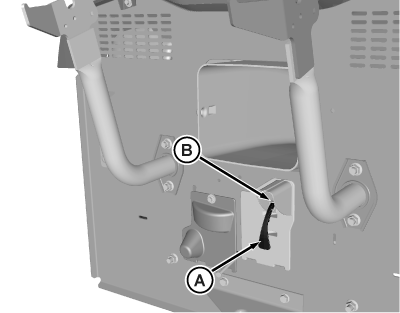

   Position 1 shown


   MXT014606-UN-03JUN15

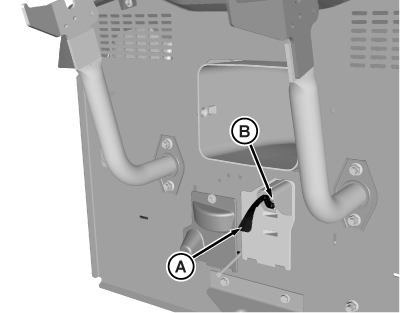

   Position 7 shown

   Grasp lever (A) at top of lever (B) and rotate lever fully down to position 1 or fully upward into position 7.

   1. Place hopper fill switch lever into position 1 when grass is very green and thick or when grass is wet. If chute plugs, move lever to a higher setting.

   2. Place hopper fill switch lever in position 7 when grass is brown and sparse or when grass is very dry. If hopper does not fill completely, move lever to a lower setting.

---




4. After adjusting full sensor, reattach hopper assembly to tractor.
