Lubricating Pivot Points

MXT014607
MXT014607-UN-01JUN15

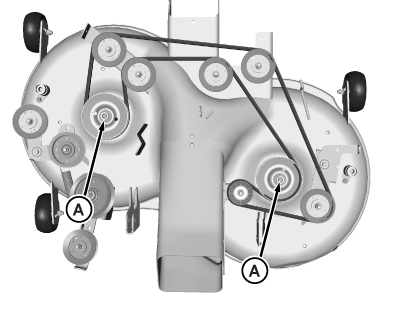

Shields removed for clarity.


Lubricate two mower spindle grease fittings (A) with two pumps of grease at specified interval.

MX52301,0000AF1-19-20150615
