Installing Grass Collector

CAUTION: Avoid Injury! Rotating blades are dangerous. Blades may throw debris through raised chute. Park machine safely before opening grass collector.

1. Park machine safely. (See Parking Safely in the Safety section).

2.
   MXT014622-UN-02JUN15


   MXT014623-UN-02JUN15


   MXT014624-UN-02JUN15

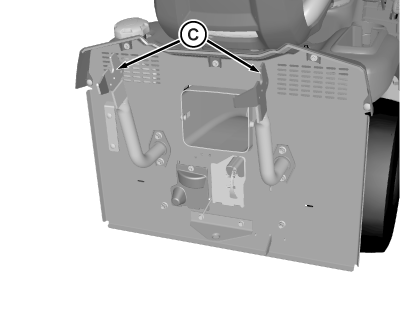

   Use two handles (A) to raise hopper assembly (B) onto back portion of support arms (C).

---




3. IMPORTANT: Avoid damage! Make sure arrows are aligned before closing hopper assembly. Damage could occur to machine and/or hopper if arrows are not aligned.

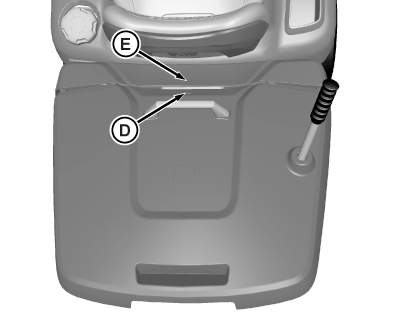

   With hopper at an approximate 20° angle, align center arrow (D) on hopper with center arrow (E) on machine. Move hopper, as necessary, to align arrows.

4. Push hopper forward on hopper, causing it to fall into pivot on support arms. Verify that arrows align, and then close hopper assembly.
