Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.

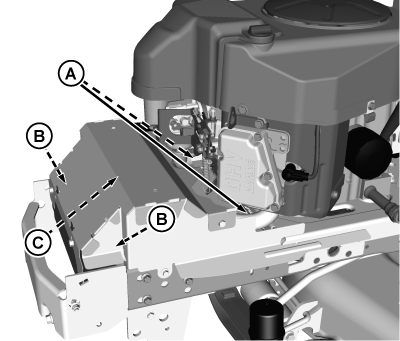

   MXT014246-UN-06JUL15

   Exhaust manifold (A), muffler pipe (B), muffler, and muffler shield (C).

---




2.

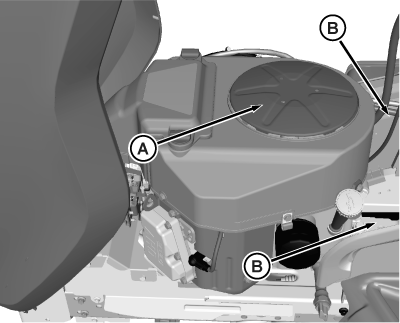

   MXT014237-UN-28MAY15

   Engine intake screen (A) and cooling fins (B).

---




3.

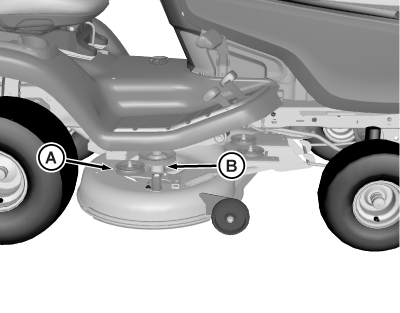

   MXT014608-UN-01JUN15

   Right side shown without shields for clarity.

   Top of mower deck, under idler pulleys (A), spindle (B), and belt areas.

---




4.

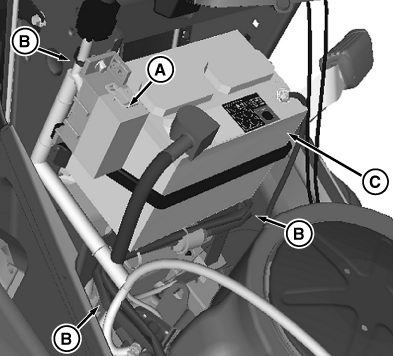

   MXT014240-UN-06JUL15

   On right side near fuse block (A), all wiring harnesses (B), and battery (C).

---




5.
   MXT014609-UN-01JUN15

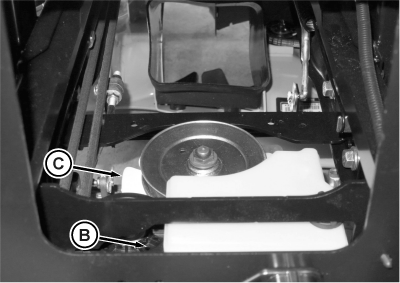

   MXT014613-UN-01JUN15

   On or near transmission (B) and transmission fan (C). Remove grass collector and discharge chute (A). Reinstall discharge chute and grass collector.

---
