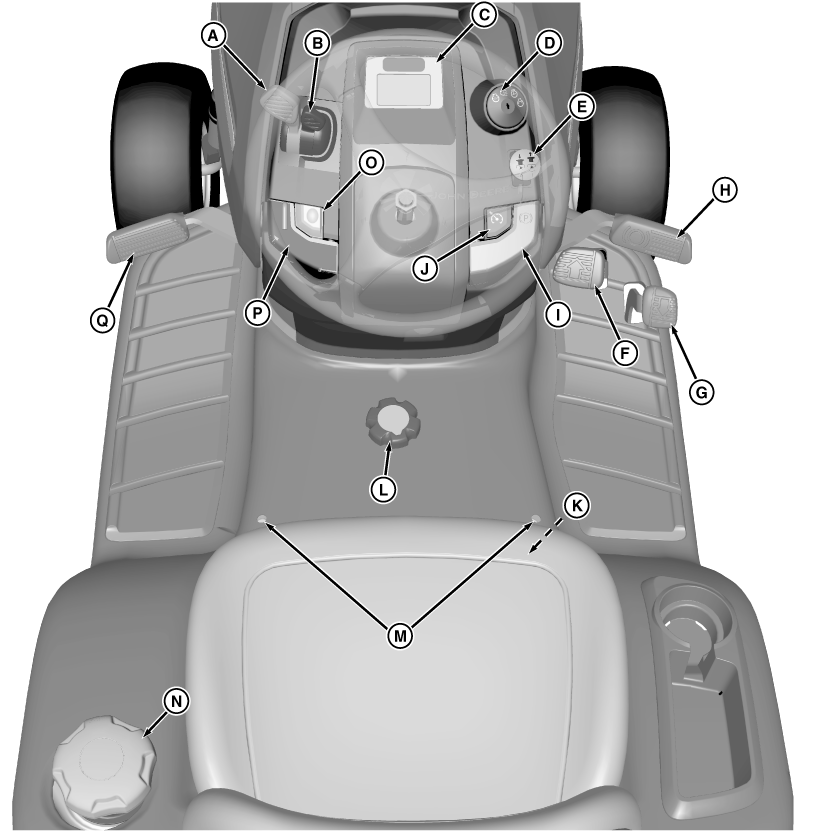

Operator Station Controls

MXT014626-UN-05JUN15

A - Throttle Control

B - Choke Control

C - Instrument Cluster

D - Key Switch

E - Mower Engagement Switch

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Brake Pedal

I - Park Brake Lever

J - Cruise Control Switch

K - Seat Adjustment Lever

L - Mower Cutting Height Knob

M - Mower Level Adjustment Ports

N - Fuel Tank Cap

O - RIO Switch

P - Mower Lift Control

Q - Mower Lift Pedal
