Removing Shields

1. Park machine safely. (See Parking Safely in the SAFETY section).

2. Allow engine and muffler to cool completely.

3. CAUTION: Avoid Injury! Rotating blades are dangerous. Before adjusting or servicing mower:

   • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
   • Always wear gloves when handling mower blades or working near blades.




   MXT015174-UN-14JUL15

   Adjust mower cutting height to deck removal position (lowest position) (A).

---




4.

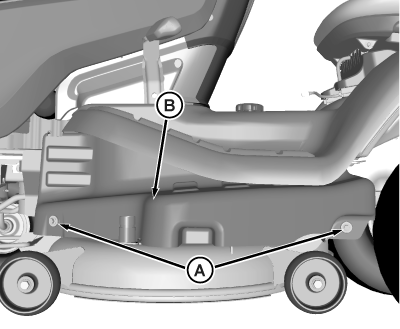

   MXT014627-UN-04JUN15

   Remove cap screws (A) and left mower deck shield (B).

---




5.

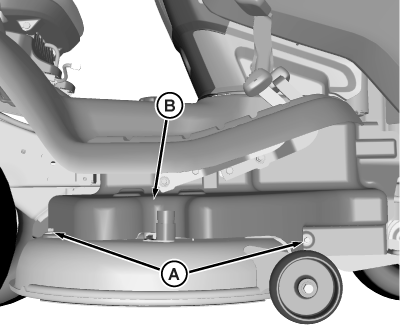

   MXT014628-UN-04JUN15

   Remove cap screws (A) and right mower deck shield (B).

---




6.

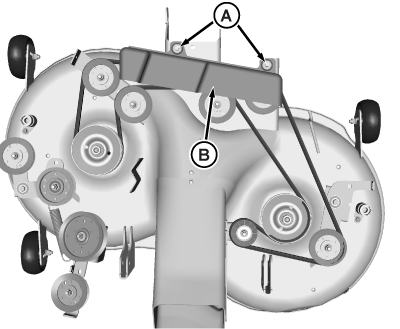

   MXT014629-UN-13OCT15

   Deck removed from machine for clarity.

   Remove cap screws (A) and center mower deck shield.

---




7.

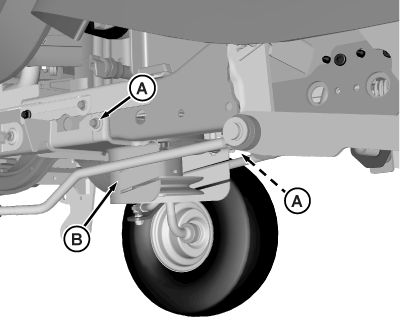

   MXT014630-UN-04JUN15

   Remove cap screws (A) and PTO clutch shield (B).

---
