Installing Shields

  1. Park machine safely. (See Parking Safely in the SAFETY section).

  2. Allow engine and muffler to cool completely.

  3. CAUTION: Avoid Injury! Rotating blades are dangerous. Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
    • Always wear gloves when handling mower blades or working near blades.

    MXT015174
    MXT015174-UN-14JUL15

    Adjust mower cutting height to deck removal position (lowest position) (A).



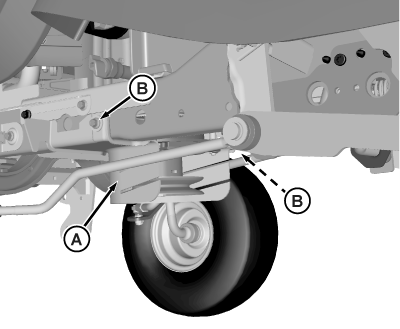

  4. MXT014631
    MXT014631-UN-04JUN15

    Install PTO clutch shield (A) with cap screws (B).

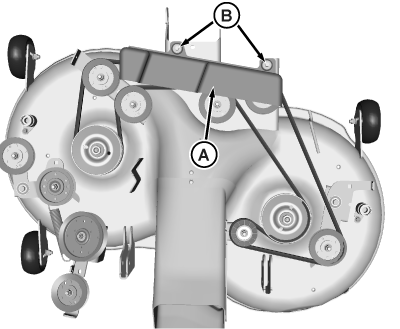

  5. MXT014632
    MXT014632-UN-04JUN15

    Deck removed from machine for clarity.

    Install center mower deck shield (A) with cap screws (B).

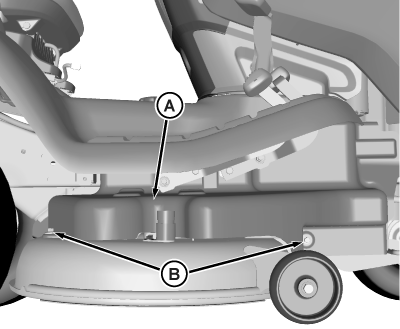

  6. MXT014633
    MXT014633-UN-04JUN15

    Install right mower deck shield (A) with cap screws (B).

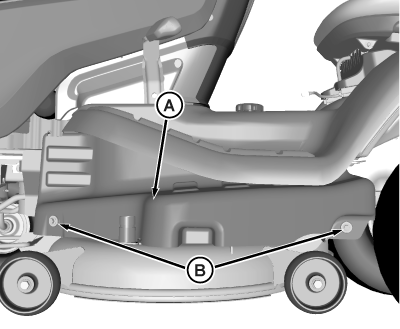

  7. MXT014634
    MXT014634-UN-04JUN15

    Install left mower deck shield with cap screws (B).



MX52301,0000B0D-19-20150714
