Install Grass Collector

Hopper Parts

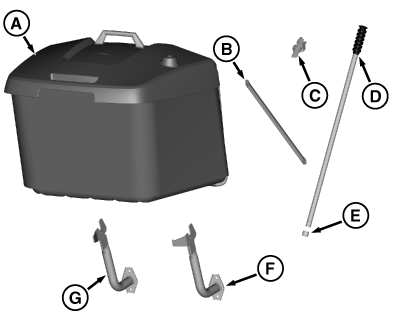

MXT015014-UN-24JUN15

Quantity	Description
1	Hopper Assembly (A)
2	Strap, Support (B)
1	Switch Assembly, Hopper Presence (C)
1	Handle, Dump (D)
1	Cap, Plastic (E) (In Bag of Parts)
1	Arm, Right Hopper Support (F)
1	Arm, Left Hopper Support (G)

Bag of Parts:

Quantity	Description
2	Pin, M6x30 Headed
4	Washer, 6.5 mm
4	Hair Pin
1	Bolt, M6x35
1	Bolt, M6x20 Carriage
2	Locknut, M6
3	Tie Strap

Assemble Hopper

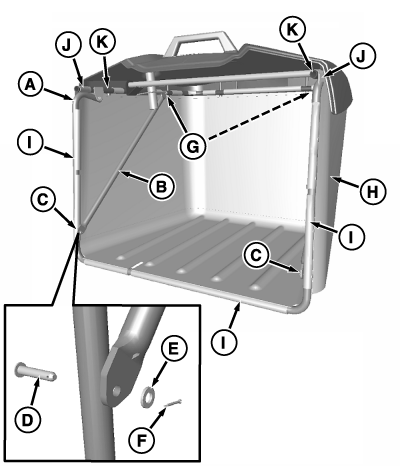

GXT001203-UN-12OCT13

GXT001204-UN-12OCT13

A - Tube, Hinged

B - Support Strap

C - Bottom Side

D - Pins, M6x30 Headed

E - Washers, 6.5 mm

F - Hair Pin

G - Upper Side

H - Grass Bag

I - Clips

J - End Clips

K - Upper Tube

L - Hopper Top

1. Fold down tube (A) as shown.

2. Install two support straps (B) (one on each side), and secure bottom side (C) with two pins (D), washers (E), and hair pins (F).

3. Secure support straps on pins on upper side (G) with washers (E) and hair pins (F).

4. Rotate the hopper assembly so the bottom side is up, and unfold grass bag (H) into the open position. Snap clips (I) on grass bag to three sides of tube frame assembly.

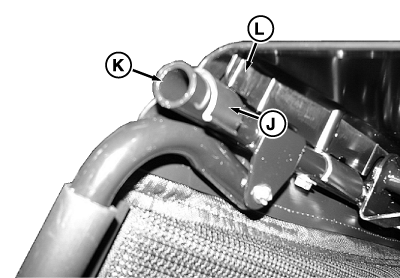

5. Push grass bag end clips (J) onto front end of upper tube (K), and slide slightly rearward under hopper top (L).

6.

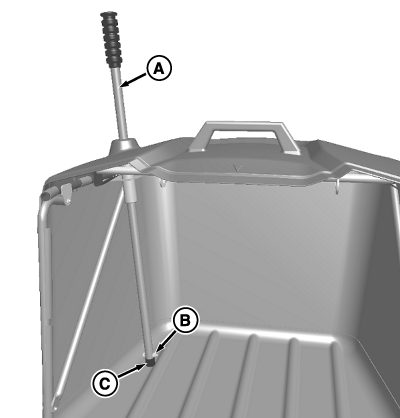

   GXT001205-UN-12OCT13

   A - Dump Handle

   B - Bolt, M6x35

   C - Plastic Cap

   Rotate hopper assembly to the upright position, and install dump handle (A) into hopper assembly. Install bolt (B) and M6 locknut on end of dump handle. Install plastic cap (C) onto end of handle.

---

Install Hopper

NOTE: Left support arm is slightly different than right support arm. Install arms so top rear surfaces curve inward.

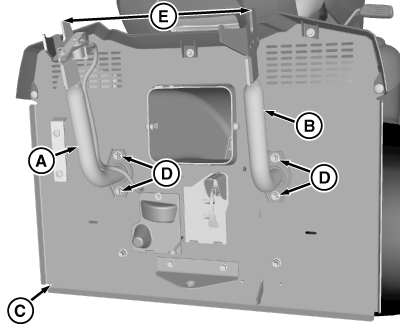

MXT015010-UN-24JUN15

1. Install left (A) and right (B) hopper support arms onto back plate (C), using hardware (D) already on machine. Note differences in left and right arms. Snug hardware enough to allow later adjustments to the arms.

2. For initial adjustment, rotate the arms so the outer top surfaces are a specified distance (E) apart.

   Item	Measurement	Specification
   Arms-to-Outer top surfaces	Distance	395 mm (15-35/64 in.)

3.

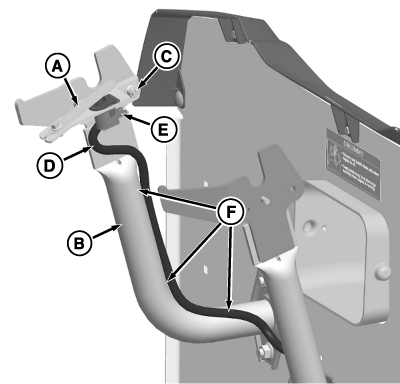

   GXT001207-UN-12OCT13

   Install switch assembly (A) to left support arm (B), as shown, using one M6x20 carriage bolt and locknut (C).

---




4. Route wiring harness (D) up the hopper support, as shown, and plug into switch (E). Secure the harness at three points (F) using three tie straps.

5.

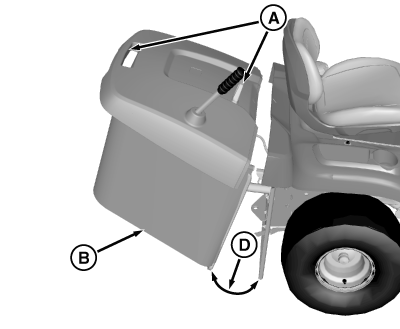

   MXT015011-UN-24JUN15

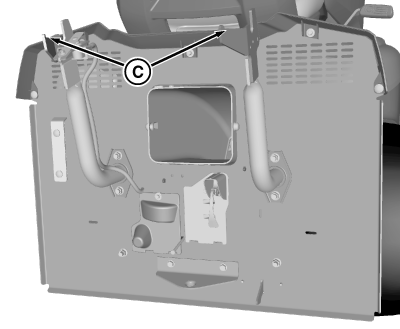

   MXT015012-UN-24JUN15

   Use two handles (A) to raise hopper assembly (B) onto back portion (C) of support arms, and leave hopper assembly open at approximately a 20° angle (D).

---




6. IMPORTANT: Make sure arrows are aligned before closing hopper assembly. Damage could occur to machine and/or hopper if arrows are not aligned.

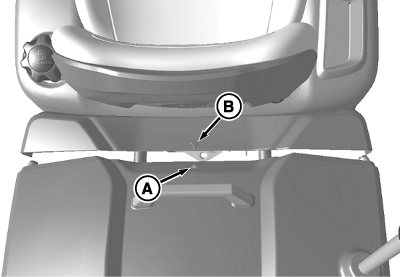

   GXT001210-UN-12OCT13

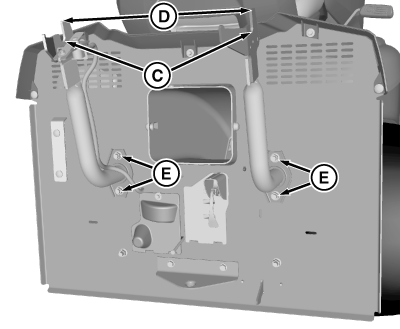

   MXT015013-UN-24JUN15

   With hopper still at approximately a 20° angle, make sure that the center arrow on the hopper (A) aligns to the center arrow on the machine (B). Move hopper, as necessary, to align the arrows.

---




7. Push the hopper forward, causing it to fall into the pivot (C) on the support arms. Check again to be sure that arrows align.

   • If arrows do not align, remove the hopper and rotate the support arms, if necessary, to align the arrows and maintaining the 395 mm (15-35/64 in.) dimension (D). Tighten the support arm hardware (E) to specification. Install hopper back onto top of support arms at an approximate 20° angle, push hopper forward into the pivot on support arms, and make sure arrows align. Repeat adjustment procedure, if necessary.

     Item	Measurement	Specification
     Support Arm Hardware	Torque	65 N·m (48 lb·ft)




8. Close hopper assembly.

9. Open and close hopper to check movement. Verify that hopper cannot be removed from machine when it is in the open position. Adjust as necessary.

10. Verify that PTO operates with hopper installed and does not operate with the hopper off. With hopper off, hopper fill dash light must illuminate.
