Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   MXT014347-UN-09JUL15

   Picture Note: X584


   MXT014711-UN-10JUN15

   Picture Note: X590

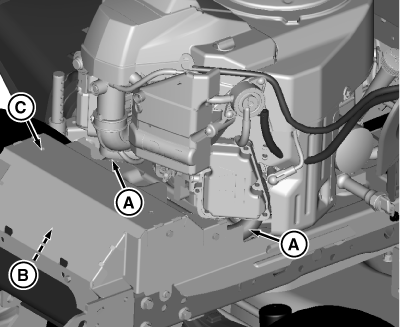

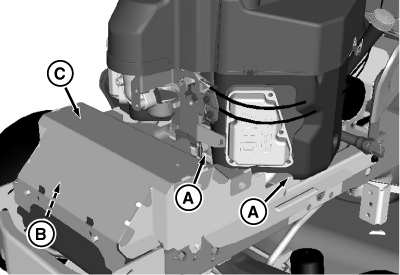

   Exhaust manifold (A), muffler pipe (B), muffler, and muffler shield (C).

---




2. NOTE: Inspect area around spark plugs on all models and clean out debris.


   MXT012544-UN-31OCT14

   Picture Note: X584


   MXT011509-UN-31OCT14

   Picture Note: X590

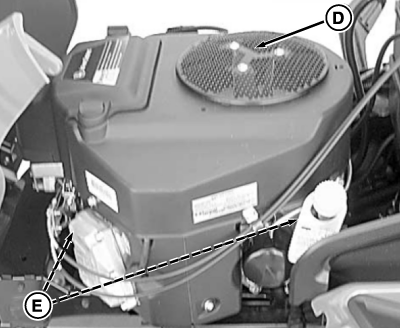

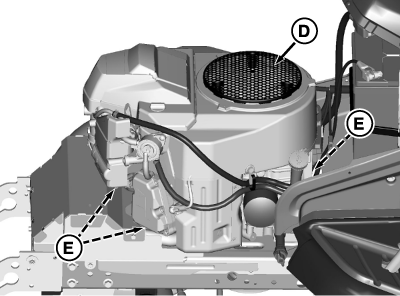

   Engine intake screen (D) and cooling fins (E).

---




3.
   MXT012543-UN-31OCT14

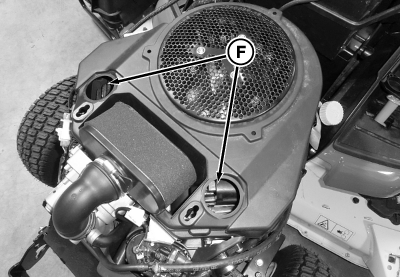

   X590: Remove air cleaner cover and remove debris through cleanout ports (F).

---




4.
   MXT014716-UN-11JUN15

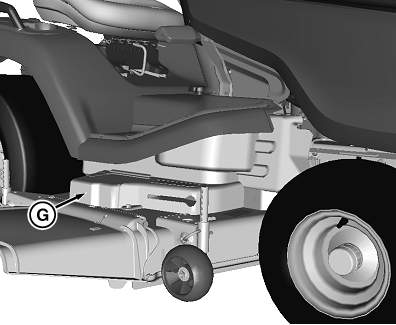

   Top of mower deck under shields (G).

---




5.
   MXT014955-UN-11JUN15

   Shields removed for clarity

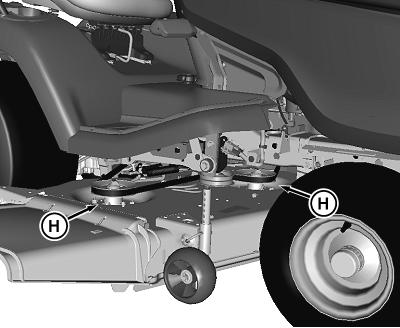

   Top of mower deck, including spindles (H) and belt areas.

---




6.
   MXAL46343-UN-05APR13

   Shields removed for clarity

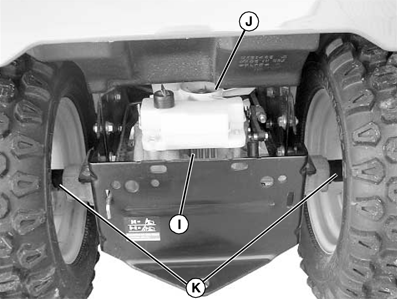

   On or near transmission (I), transmission fan (J), and driveline (K).

---




7.
   MXT015168-UN-14JUL15

   Picture Note: X584

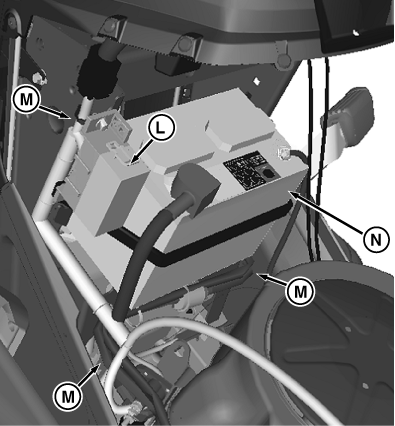

   On right side near fuse block (L), all wiring harnesses (M), and battery (N).

---
