Lubricating Mower Spindles

MXT015173
MXT015173-UN-09JUL15

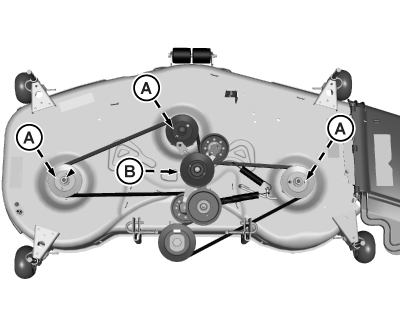

48A mower shown, shields removed for clarity

MXT014963
MXT014963-UN-06JUL15

  1. Remove deck shields. (See Removing and Installing Shields in the SERVICE MOWER section.)

  2. Lubricate three mower spindle grease fittings (A) with two pumps of grease at specified intervals.

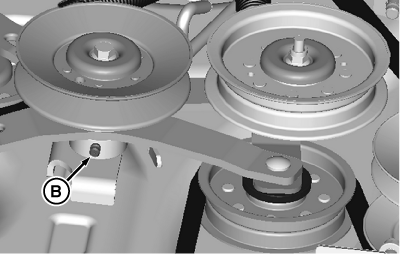

  3. Lubricate idler arm pivot grease fitting (B) with two pumps of grease at specified interval.

  4. Install deck shields. (See Removing and Installing Shields in the SERVICE MOWER section.)

JK79365,0000140-19-20150710
