Install Seat Springs

IMPORTANT: Avoid damage! To prevent damage to seat switch and seat base, do not operate without suspension coils in place.

MXT014315-UN-28MAY15

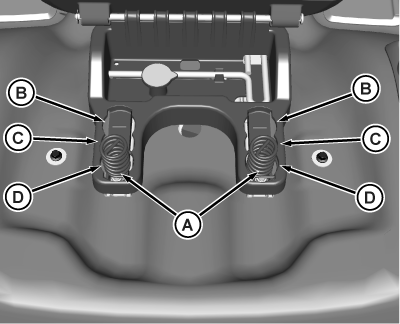

1. Raise seat and install two springs (A) in one of three slotted areas in seat base.

• Move coils to front position (B) for softest ride.
• Move coils to middle position (C) for average ride.
• Move coils to rear position (D) for firm ride.
