Install Steering Wheel

1. Install steering wheel onto steering shaft. Turn steering wheel to position front wheels straight and facing forward.

2. Remove steering wheel.

3. Put John Deere Multi-Purpose lubricant or an equivalent on steering shaft.

4.

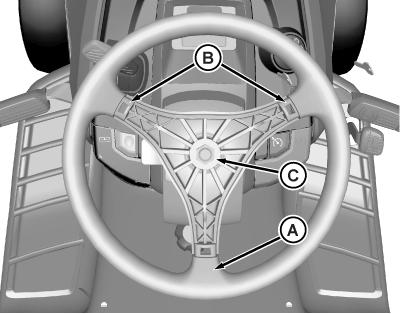

   MXT014313-UN-28MAY15

   Install steering wheel onto steering shaft with one spindle (A) positioned at 180° at bottom of wheel and spindles (B) at approximately 45° at top of wheel.

---




5. Install nut (C) and tighten to specification.

   Item	Measurement	Specification
   Steering Wheel Nut	Torque	38 N·m (28 lb·ft)

6.

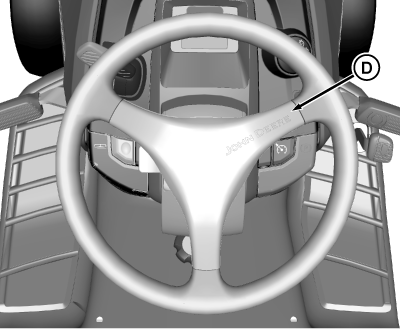

   MXT014314-UN-28AUG15

   Install cover (D) so that the logo is on the right side facing up.

---
