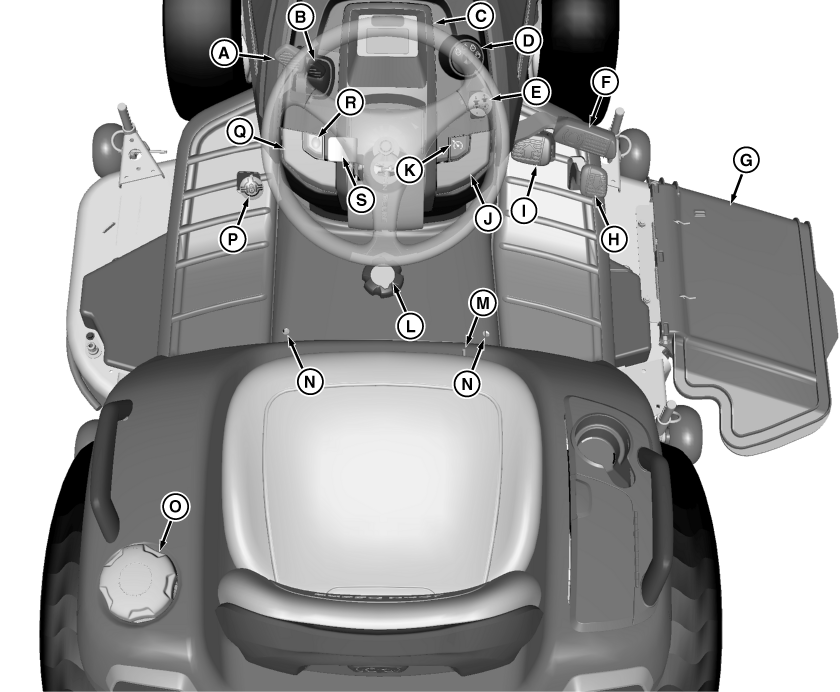

Operator Station Controls

MXT014958-UN-09JUL15

A - Throttle Lever

B - Choke Lever (X584 Only)

C - Instrument Cluster

D - Key Switch

E - Mower/PTO Engagement

F - Brake Pedal

G - Mower Deflector

H - Reverse Travel Pedal

I - Forward Travel Pedal

J - Park Brake Lever

K - Cruise Control Button

L - Mower Cutting Height Knob

M - Seat Adjustment Lever

N - Mower Level Adjustment Ports

O - Fuel Tank Cap

P - Traction Assist Pedal

Q - Mower Lift Control

R - RIO Switch

S - Tilt Steering Lever
