Replacing Fuses (X584)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

3.

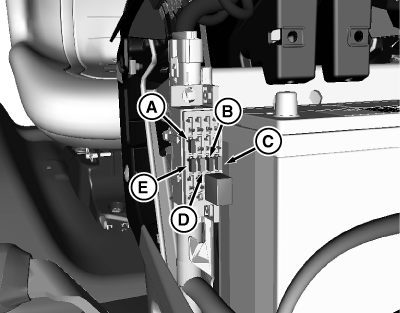

   MXT014321-UN-15MAY15

   A - Diode

   B - 20 Amp

   C - 7.5 Amp

   D - 10 Amp

   E - 15 Amp

   Pull blown fuse out of socket.
   • Fuse identification:



   Position	Circuit
   B	Starter Circuit
   C	PTO Circuit
   D	12 Volt Power Port (Optional)
   E	Main Circuit

---




4. Check metal strip in fuse window and discard fuse or fuses if strip is broken.

5. Push new fuse into correct socket.

6. Lower hood.
