Adjusting Cutting Height

Cutting height can be adjusted from approximately 25—100 mm (1—4 in.). When mower deck is in transport position cutting height is approximately 100 mm (4 in.).

Mower cutting height increments are identified on decal around the cutting height knob. To change or attain cutting height desired:

  1. Check tire pressure and adjust as needed.

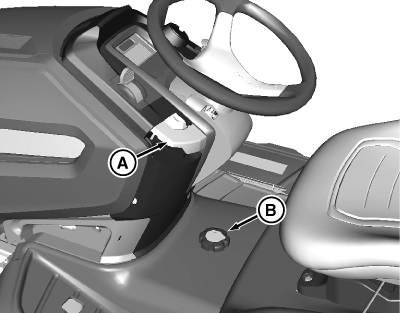

  2. MXT014338
    MXT014338-UN-15MAY15

    Picture Note: X590 shown.

    To raise mower deck, pull up on hydraulic mower lift lever (A).


  3. Turn mower cutting height knob (B) to desired cutting height position. Mower will be at this cutting height each time it is lowered.

  4. Lower mower deck.

  5. Adjust mower deck wheels.

MX52301,0000B45-19-20150616
