Switching to Open and Closed Modes

Avoid injury! Rotating belts and blades are dangerous.

  1. Stop machine on a level surface, not on a slope.

  2. Disengage mower blades.

  3. Lock the park brake.

  4. Wait for all moving mower deck parts to stop before you leave the operator platform.

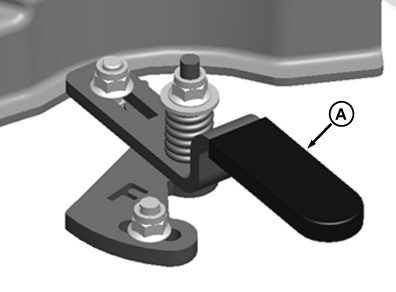

  5. MXT010712
    MXT010712-UN-08OCT14

    After exiting the operator platform and standing next to the machine, push down on lever (A).

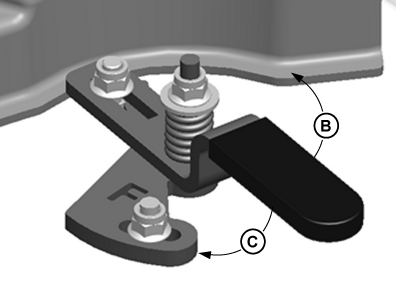

  6. MXT010713
    MXT010713-UN-08OCT14

    Rotate lever clockwise (C) to close or counterclockwise (B) to open.


  7. Ensure that lever has locked into desired position and lever no longer rotates.

OUO2005,00003B8-19-20150921
