Install Belt Shields (EZtrak™, ZTrak™ 54-Inch Mower Decks Without Flip Covers)

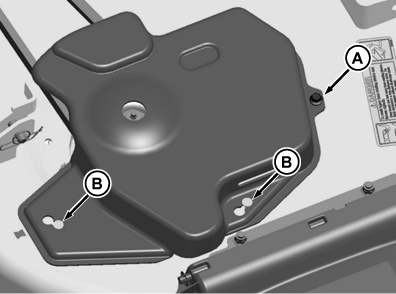

  1. MXT010950
    MXT010950-UN-16JUN14

    Picture Note: Right side shield shown.

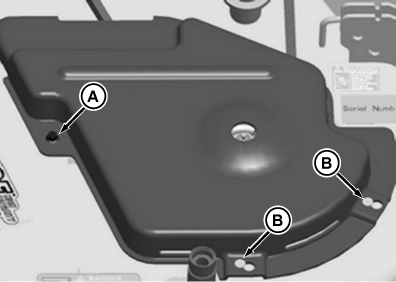

    MXT010960
    MXT010960-UN-16JUN14

    Picture Note: Left side shield shown.

    Install both the right and left belt shields placing over studs (B).


  2. Turn shields counterclockwise to lock on studs, and install self-tapping screws (A).

OUO2005,00003D9-19-20150928
