Parts In Kit (54-Inch Mower Deck)

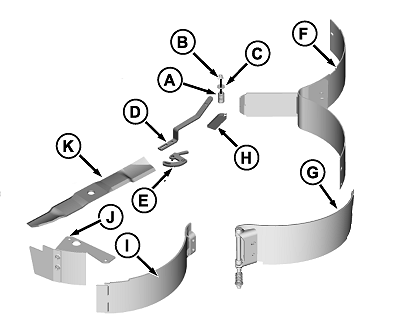

Parts in Kit
MXT015871-UN-28SEP15
|
Qty. |
Description |
|---|---|
|
1 |
Spring (A) |
|
1 |
Locknut, M8 (B) |
|
1 |
Washer (C) |
|
1 |
Handle (D) |
|
1 |
Plate, Detent (E) |
|
1 |
Deflector, Left (F) |
|
1 |
Deflector, Right (G) |
|
2 |
Grip (H) |
|
1 |
Deflector, Gate (I) |
|
1 |
Deflector, Stationary (J) |
|
3 |
Blade, Mulch (K) |
|
2 |
Bolt, M8 Serrated |
|
8 |
Locknut, M8 |
|
3 |
Carriage Bolt, M8x25 |
|
1 |
Pin, Detent |
|
1 |
Label, Operation |
|
OUO2005,00003E7-19-20150928 |
