Installing Stationary Deflector

1.

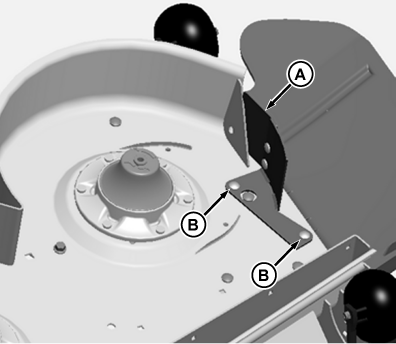

   MXT010719-UN-22DEC14

   Picture Note: 54-Inch mower deck shown.

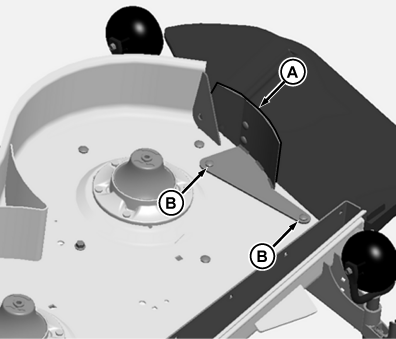

   MXT012896-UN-22DEC14

   Picture Note: 60-Inch mower deck shown.

   Position stationary deflector (A) as shown.

---




2. Insert carriage bolts (B) through deflector and into holes in mower deck.

3.

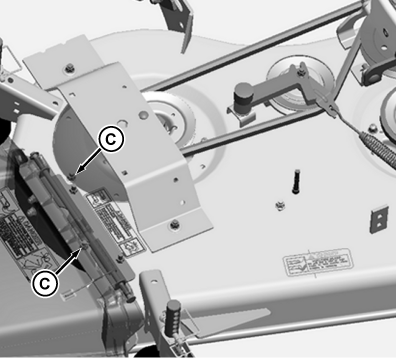

   MXT010720-UN-05JAN15

   Picture Note: 54-Inch mower deck shown.

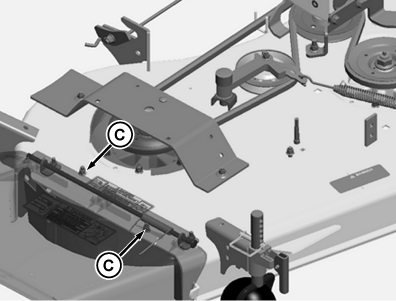

   MXT012897-UN-05JAN15

   Picture Note: 60-Inch mower deck shown.

   Install two M8 locknuts (C) on bolts. Tighten to 20 N·m (15 lb·ft).

---
