Installing Right Deflector

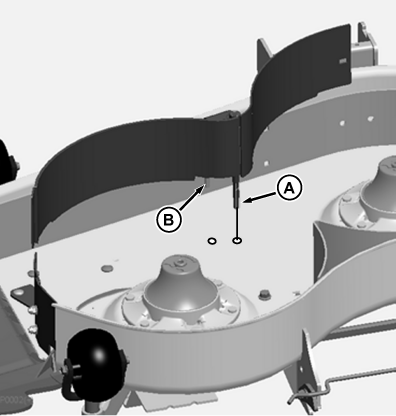

MXT012559
MXT012559-UN-22DEC14

Picture Note: 54-Inch mower deck shown.

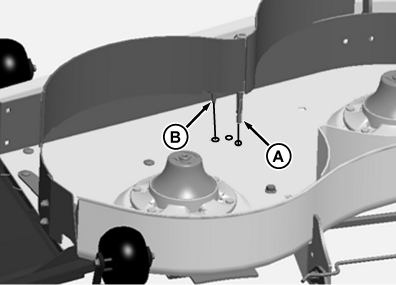

MXT012917
MXT012917-UN-05JAN15

Picture Note: 60-Inch mower deck shown.

  1. Position right side deflector assembly, as shown with pivot (A) and carriage bolt (B) inserted into holes in mower deck.

  2. Install M8 locknut on carriage bolt (B) and hand tighten.

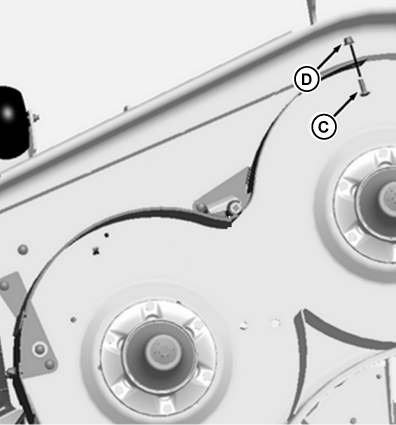

  3. MXT012909
    MXT012909-UN-22DEC14

    Picture Note: 54-Inch mower deck shown. 60-Inch mower deck is the same.

    Install an M8x25 carriage bolt (C) and an M8 locknut (D) into front plate and tighten to 20 N·m (15 lb·ft).

OUO2005,00003EE-19-20150929
