Installing Left Deflector

1.

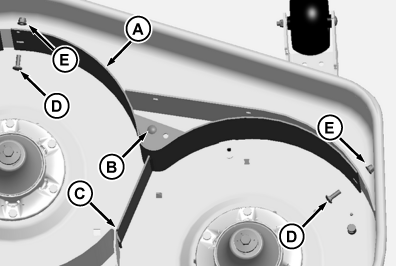

   MXT012560-UN-23SEP14

   Install left mulch baffle (A) as shown with carriage bolt (B) inserted into hole of mower deck. Position rear split tab (C) against left corner of rear baffle.

---




2. Install two M8x25 carriage bolts (D) and M8 locknuts (E) through ends of mulch baffle and into front plate. Tighten to 20 N·m (15 lb·ft).

3.

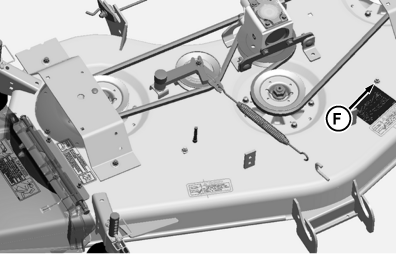

   MXT012910-UN-30DEC14

   Picture Note: 54-Inch mower deck shown.

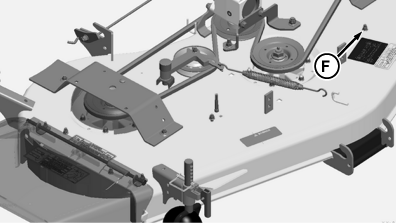

   MXT012911-UN-30DEC14

   Picture Note: 60-Inch mower deck shown.

   On top side of mower deck, install M8 locknut (F) on left deflector stud. Tighten to 20 N·m (15 lb·ft).

---
