Installing Mulch Blades

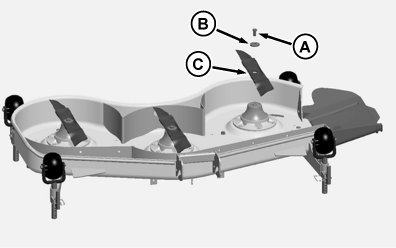

  1. MXT012577
    MXT012577-UN-22DEC14

    Install blade (C) with cutting edge toward the ground.


  2. Install large washer (B) and bolt (A).

  3. Insert wood block between blade and mower to prevent blade from turning when tightening bolt.

  4. Tighten bolt to 67.8 N·m (50 lb.-ft.).

  5. To check blade-to-mulch baffle clearance, rotate blades by hand. If interference occurs, check that hardware is tightened.

OUO2005,00003F3-19-20150928
