Install Mower Deck Shield, If Equipped (European Models Only)


X700 Edge™ High Capacity Mower Decks (S/N 040001-)

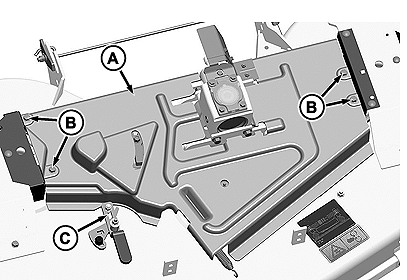

  1. MXT015842
    MXT015842-UN-29SEP15

    Picture Note: 54-Inch mower deck shown.

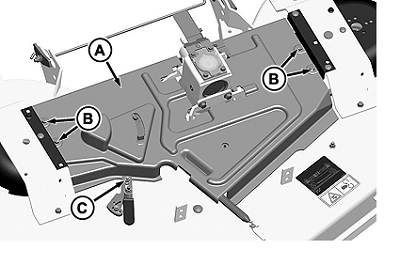

    MXT015843
    MXT015843-UN-29SEP15

    Picture Note: 60-Inch mower deck shown.

    Install shield (A) to mower deck using four self-tapping screws (B).


  2. Check for clearance between handle assembly (C) and shield.

  3. If necessary, remove shield and cut away excess material.

OUO2005,00003F4-19-20150929
