Assemble Handle

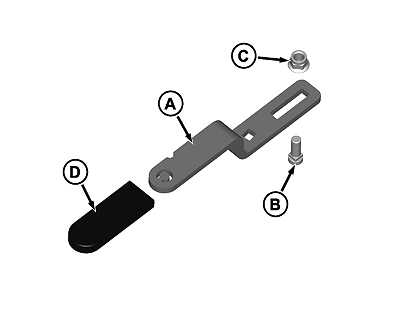

  1. MXT015995
    MXT015995-UN-28SEP15

    Select handle (A) for your application:

    • X700, 54HC handle is marked C.
    • X700, 60HC handle is marked marked K.


  2. Install detent pin (B) and nut (C) on handle at furthest point in slot (as shown) and hand tighten.

  3. Install grip (D).

OUO2005,00003F6-19-20150928
