Assemble Handle

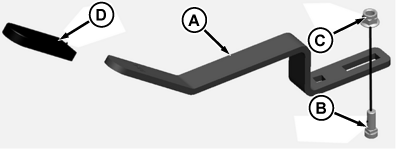

  1. MXT010716
    MXT010716-UN-08OCT14

    Select handle (A) for your application:

    • EZtrak and ZTrak, 54HC handle is marked marked E.
    • EZtrak and ZTrak, 60HC handle is marked marked S.


  2. Install detent pin (B) and nut (C) on handle at furthest point in slot (as shown) and hand tighten.

  3. Install grip (D).
