Installing Stationary Deflector

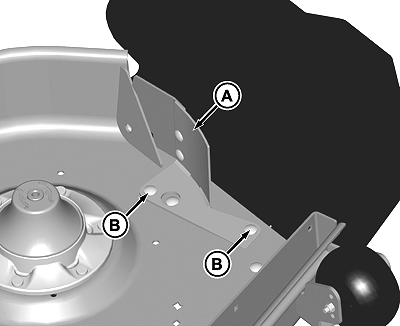

  1. MXT015996
    MXT015996-UN-28SEP15

    Picture Note: 54-Inch mower deck shown.

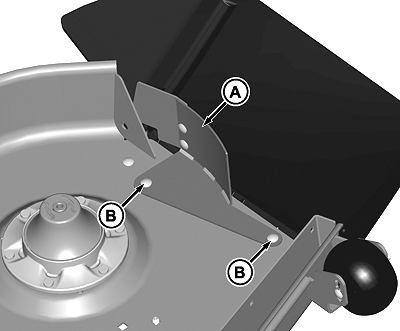

    MXT015997
    MXT015997-UN-28SEP15

    Picture Note: 60-Inch mower deck shown.

    Position stationary deflector (A) as shown.


  2. Insert carriage bolts (B) through deflector and into holes in mower deck.

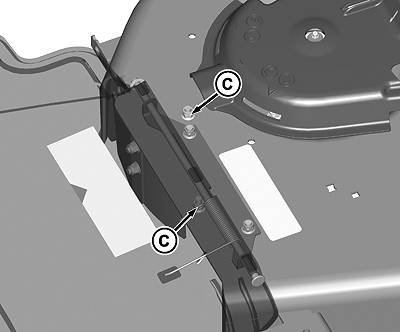

  3. MXT015998
    MXT015998-UN-28SEP15

    Picture Note: 54-Inch mower deck shown.

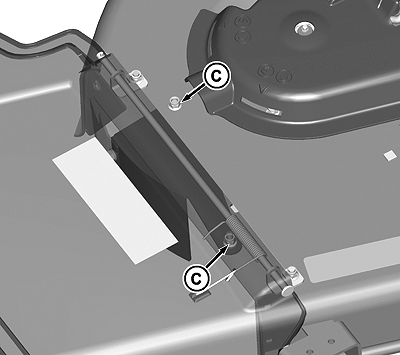

    MXT015999
    MXT015999-UN-28SEP15

    Picture Note: 60-Inch mower deck shown.

    Install two M8 locknuts (C) on bolts. Tighten to 20 N·m (15 lb·ft).

OUO2005,00003FA-19-20150928
