Installing Right Deflector

1.
   MXT016000-UN-28SEP15

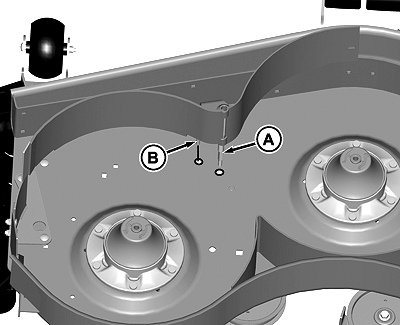

   Picture Note: 54-Inch mower deck shown.


   MXT016001-UN-28SEP15

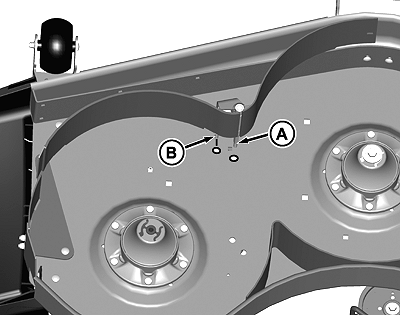

   Picture Note: 60-Inch mower deck shown.


   MXT016002-UN-28SEP15

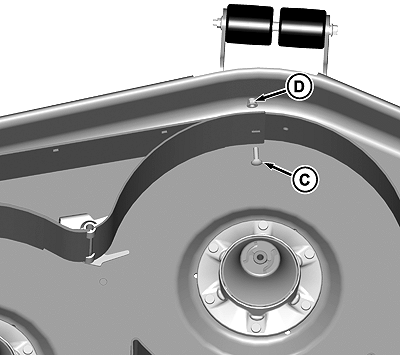

   Picture Note: 54-Inch mower deck shown. 60-Inch mower deck is the same.

   Position right side deflector assembly, as shown with pivot (A) and carriage bolt (B) inserted into holes in mower deck.

---




2. Install M8 locknut on carriage bolt (B) and hand tighten.

3. Install an M8x25 carriage bolt (C) and an M8 locknut (D) into front plate and tighten to 20 N·m (15 lb·ft).
