Installing Mulch Blades

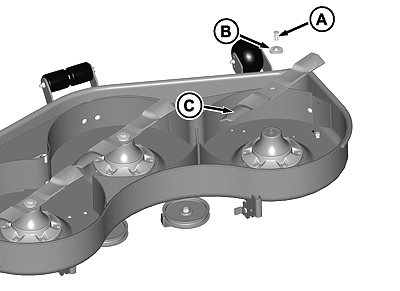

  1. MXT016007
    MXT016007-UN-28SEP15

    Install blade (C) with cutting edge toward the ground.


  2. Install large washer (B) and bolt (A).

  3. Insert wood block between blade and mower to prevent blade from turning when tightening bolt.

  4. Tighten bolt to 67.8 N·m (50 lb.-ft.).

  5. To check blade-to-mulch baffle clearance, rotate blades by hand. If interference occurs, check that hardware is tightened.
