Removing MulchControl™


Removing MulchControl™

  1. Remove mower deck (See Removing Mower section in Vehicle/Mower Deck OM).

  2. For EZtrak™ and ZTrak™ 54-Inch mower decks only, remove right and left belt shields. (See Remove Belt Shields (EZtrak™, ZTrak™ 54-Inch Mower Decks Without Flip Covers) in the PREPARING section).

  3. Remove mulch blades.

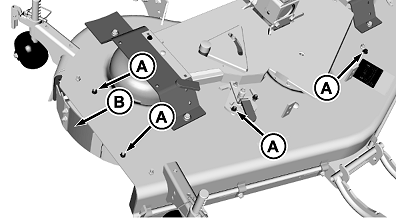

  4. MXT016009
    MXT016009-UN-29SEP15

    Picture Note: Discharge chute removed for ease of viewing.

    Remove four M8 locknuts (A) from top of mower deck, and remove stationary deflector (B) from discharge area.

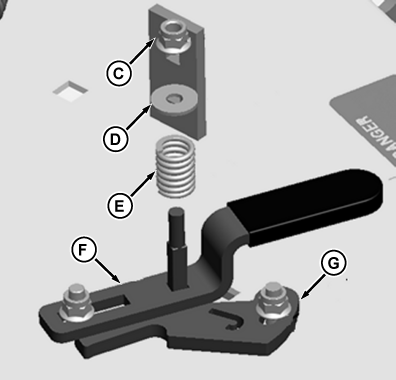

  5. MXT012574
    MXT012574-UN-08OCT14

    Remove top of handle and detent plate components: M8 locknut (C), washer (D), spring (E), handle assembly (F), and detent plate (G).

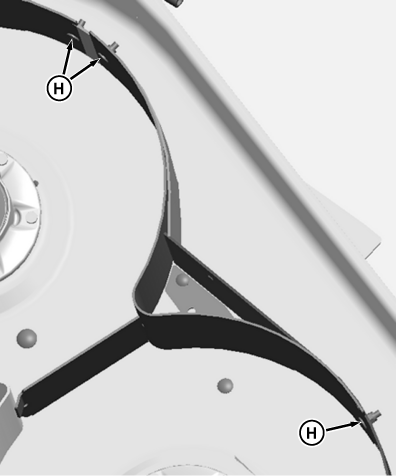

  6. MXT012575
    MXT012575-UN-23SEP14

    Remove three sets of M8 hardware (H), and remove all deflectors from underside of mower deck.


  7. Install hardware back into any exposed holes that remain on deck after removing MulchControl™.


Storing MulchControl™

Clean and store all MulchControl™ parts in a clean, dry place.

OUO2005,0000403-19-20151008
