Remove Mower Deck Hole Plugs, If Equipped (X700 European Models Only)

X700 Edge™ High Capacity Mower Decks (S/N 030001-040000)

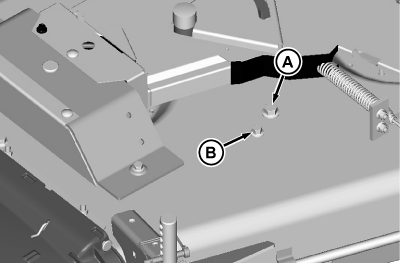

MXT014807-UN-24JUL15

Picture Note: 54-Inch mower deck shown.

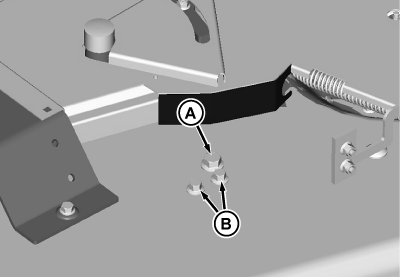

MXT014808-UN-24JUL15

Picture Note: 60-Inch mower deck shown.

1. 54-Inch Mower Deck:

   1. Remove and retain bolt (A) and locknut.

   2. Remove and retain self-tapping screw (B).

2. 60-Inch Mower Deck:

   1. Remove and retain bolt (A) and locknut.

   2. Remove and retain two self-tapping screws (B).
