Remove Mower Deck Shield, If Equipped (X700 European Models Only)


X700 Edge™ High Capacity Mower Decks (S/N 040001-)

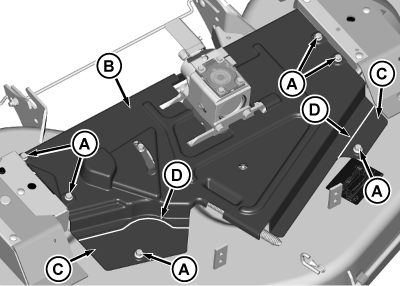

  1. MXT014805
    MXT014805-UN-28JUL15

    Picture Note: 54-Inch mower deck shown.

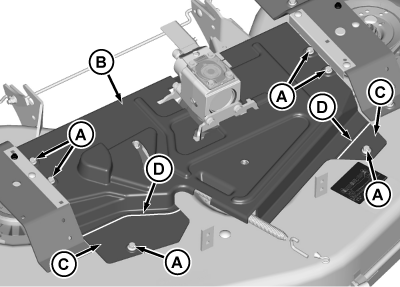

    MXT014806
    MXT014806-UN-28JUL15

    Picture Note: 60-Inch mower deck shown.

    Remove and retain six self-tapping screws (A) and remove shield (B).


  2. Remove flat portion (C) of shield by cutting along area indicated with white line (D).

OUO2005,0000405-19-20150929
