Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section).

  1. MXT007774
    MXT007774-UN-17JUL13

    Shown with hood removed.

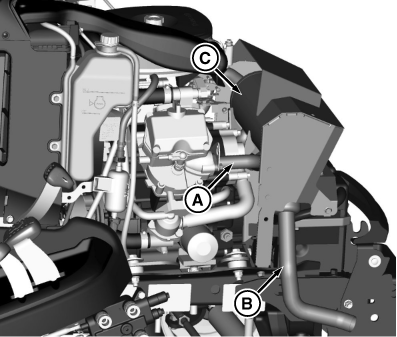

    Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield.


  2. MXAL42646
    MXAL42646-UN-22MAR13

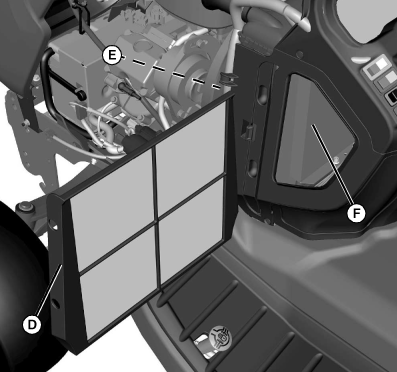

    Engine intake screens (D), cooling fins (E) and oil cooler (F).


  3. MXAL42647
    MXAL42647-UN-22MAR13

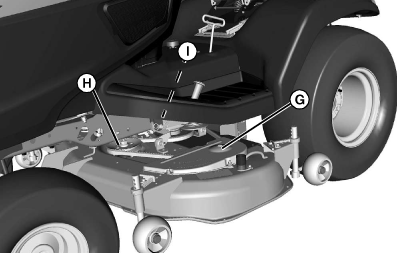

    Top of mower deck, under shields (G), including spindle (H) and belt areas. On or near transmission and driveline (I) (if equipped).


  4. MXAL42648
    MXAL42648-UN-22MAR13

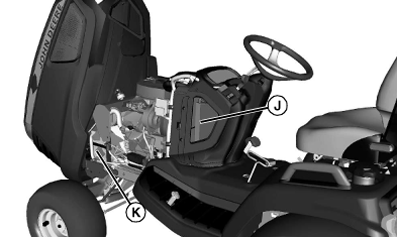

    Under left side panel (J), and all wiring, including the battery (K) and related wiring harnesses
