Replacing Fuses and Relays (X710)

Locate Fuses and Relays

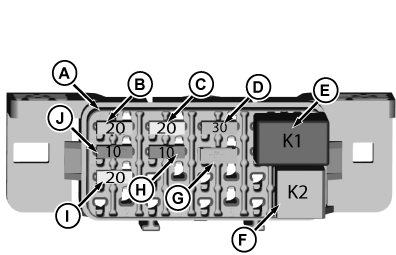

MXT014363-UN-14MAY15

A - Fuse Block

B - 20 A Key Switch Fuse

C - 20 A Power Port Fuse

D - 30 A Starter Fuse

E - Starter Relay

F - Power Port Relay

G - Diode

H - 10 A Fuel Pump Fuse

I - 20 A Cluster Fuse

J - 10 A Light Switch Fuse

Remove and Check Fuses

1. Pull fuse from socket.

2.
   MXT015243-UN-23JUL15

   A - Clip

   Check metal clip (A) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
