Replacing Fuses and Relays (X730, X734, X738, X739)

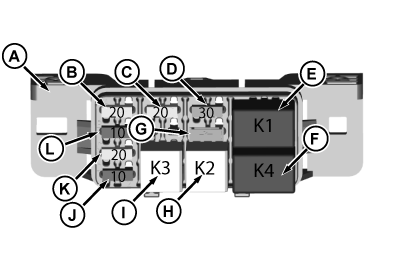

Locate Fuses and Relays

MXT014366-UN-15MAY15

A - Fuse Block

B - 20 A Key Switch Fuse

C - 20 A Power Port Fuse

D - 30 A Starter Fuse

E - Starter Relay

F - EFI Engine / Power Port Relay

G - Diode

H - Fuel Shutoff Relay

I - EFI Safety Relay

J - 10 A EFI Engine Fuse

K - 20 A Cluster Fuse

L - 10 A Headlight Fuse

Remove and Check Fuses

1. Pull fuse from socket.

2.
   MXT015243-UN-23JUL15

   A - Clip

   Check metal clip (A) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
