Cleaning Spark Arrestor

MXT014376-UN-29JUN15

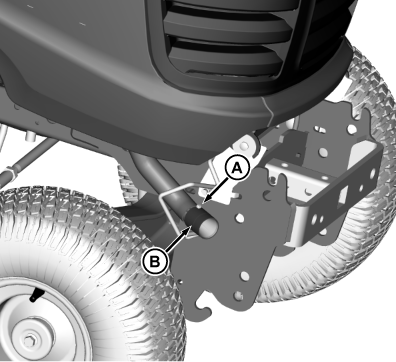

1. Remove screw (A) and spark arrestor (B) from end of muffler exhaust pipe.

   NOTE: Observe direction of arrestor inside exhaust pipe for reassembly.

2. Inspect, clean, or if necessary, replace the screen if damaged.

3. Install spark arrestor (B) on muffler exhaust pipe with original screw (A).
