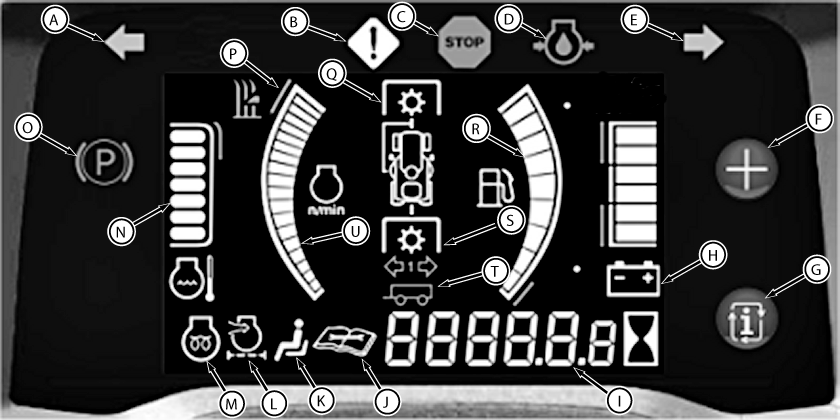

Instrument Cluster

MXT015264-UN-08SEP15

A - Left Turn Signal (if equipped) - Indicates left turn.

B - Caution Indicator - Refer to corresponding flashing indicator on screen when displayed. Operator action may be required.

C - STOP Indicator -Refer to corresponding flashing indicator on screen when displayed. Operator is advised to immediately remedy condition when displayed.

D - Low Engine Oil Pressure Indicator - If flashing, engine oil pressure is too low. Stop engine and perform service. (See Checking Engine Oil Level in the SERVICE ENGINE section.)

E - Right Turn Indicator (if equipped) - Indicates right turn.

F - Increment Button. To toggle the state of options, press the Increment button.

G - Display Mode Button. To highlight options press the Display Mode button. When the Display Mode button changes the hour meter to show the letter L, the screen brightness can be adjusted with the Increment button.

H - Charging System Gauge - Indicates if charging system voltage is operating at normal, too high, or too low. If displaying in red zone, service may be required.

I - Hour Meter - Displays total engine running operating hours. Located to left of hour glass indicator. (See Using the Hour Meter in the OPERATING section.)

J - Service Indicator - If flashing, contact your John Deere dealer for service. Will not flash to indicate service intervals. (See Service Intervals in the SERVICE INTERVALS section.)

K - Operator Presence Indicator- Flashing indicator means that safety interlock system prevented operation because operator not on seat.

L - Air Restriction Indicator - (diesel models only) Will display if air cleaner requires service.

M - Engine Preheat Indicator– (diesel models only) Indicates that the glow plug is preheating the engine. Wait until indicator turns off before starting engine.

N - Coolant Temperature Gauge - Indicates coolant temperature. If coolant temperature is too hot, PTO operation not allowed. Located above coolant temperature symbol.

O - Park Brake Indicator -If displayed, brake, or park brake is engaged. If flashing, this indicator means that the safety interlock system prevented operation because the brake is not in correct position.

P - Best Cut Zone - Best cut quality achieved when engine speed in green zone of tachometer.

Q - Front/Mid PTO – Displays when deck or front powered attachment is engaged. If flashing, the safety interlock system prevented operation due to improper use of the PTO system.

R - Fuel Gauge - Indicates fuel level. If all nine blocks are flashing, contact your John Deere dealer.

S - Rear PTO Indicator (if kit installed) - Displays when rear powered attachment is engaged. If flashing, the safety interlock system prevented operation due to improper use of the PTO system.

T - Trailer Turn Signal (if equipped) - When electrically connected to trailer, flashes if all directional lights are working properly. If not displayed when electrically connected to trailer, indicates a problem with the system.

U - Tachometer - Represents engine speed. Faster engine speeds fill more blocks.
