Replacing Fuses and Relays

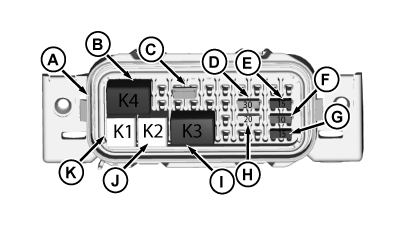

Locate Fuses and Relays

MXT014369
MXT014369-UN-15MAY15

A - Fuse Block

B - Light / Power Port Relay

C - Diode

D - 30 A Starter Fuse

E - 15 A Key Switch Fuse

F - 10 A Headlight Fuse

G - 15 A Cluster Fuse

H - 20 A Power Port Fuse

I - Starter Relay

J - Fuel Solenoid Relay

K - Glow Plug Relay


Remove and Check Fuses

  1. Pull fuse from socket.

  2. MXT015243
    MXT015243-UN-23JUL15

    A - Clip

    Check metal clip (A) in fuse window. Discard fuse if clip is broken.


  3. Install fuse.

OUO2004,0000C47-19-20150730
