Install PTO Shaft

Avoid Damage! Broom uses two different shear bolt lengths and diameters. Use of wrong shear bolt can damage the gearbox.

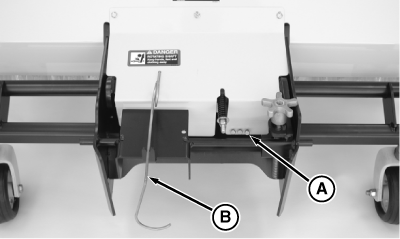

  1. MXT013689
    MXT013689-UN-13MAR15

    Remove one 5.7 cm (2.25 in.) shear bolt (A) and locknut stored at back side of broom.


  2. Position PTO shaft support (B) as shown.

  3. MXT013690
    MXT013690-UN-13MAR15

    Slide PTO shaft onto broom stubshaft.


  4. Align hole in PTO shaft with hole in stubshaft.

  5. Install shear bolt (A) and locknut
