Checking and Adjusting L-pin Engagement

Checking and Adjusting L-pin Engagement

1. Avoid Damage! Broom could slide out of position on quick hitch if L-pins are not properly engaged. Check engagement of L-pins before operating and adjust as needed.

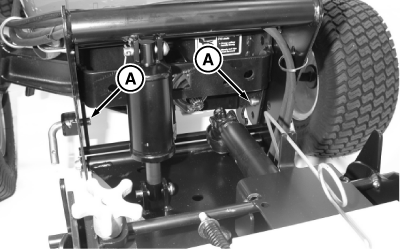

   MXT013702-UN-13MAR15

   Make sure both L-pins (A) pass completely through holes in broom mounting frame.

---




2. Push broom as far as possible to right and left. Make sure that L-pins remain in mounting frame holes.

3. Reverse L-pins if they disengage or do not pass completely through holes in mounting frame.

Reversing L-pins

1. Remove broom from front quick hitch.

2.

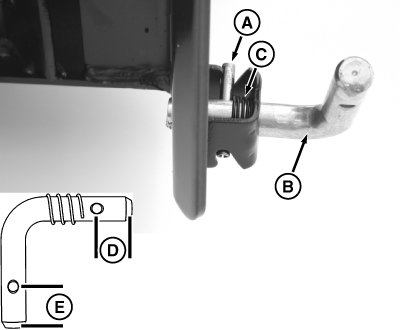

   MXT013703-UN-29JUL15

   Remove roll pin (A) with a punch.

---




3. Remove L-pin (B) and spring (C) from bracket.

4. The L-pin legs are different lengths. Leg (D) is 23 mm (0.9 in.) and leg (E) is 27 mm (1.1 in.)

   Hold spring inside bracket. Reverse L-pin and insert longer leg (E) through bracket and spring.

5. Install roll pin.

6. Repeat for other L-pin.

7. Install broom on front quick hitch.

8. Push broom as far as possible to right and left. Make sure that L-pins remain in the mounting frame holes.
