Raising and Lowering Broom

Lowering Broom

Avoid injury! Attachment can lower rapidly. Keep bystanders, especially children, away from attachment when raising and lowering.

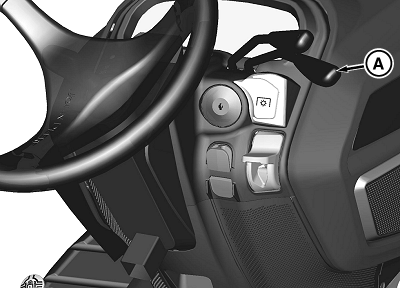

MXT013827-UN-24MAR15

• To lock broom in float position for operation on uneven ground contour, push lever completely forward until it locks in place.
• To lock broom in desired lowered position, lower broom and return lever to center position.

Raising Broom

•
  MXT013827-UN-24MAR15

  Run engine at idle speed.

---

• Pull rearward slowly on lower hydraulic control lever (A) until broom is at desired height.
• Release lever.
