Adjusting Broom Angle

  1. Start engine.

  2. MXT009251
    MXT009251-UN-21SEP13

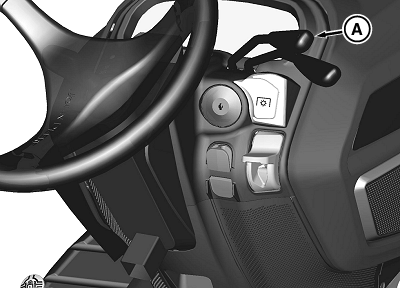

    Use upper hydraulic control lever (A) to adjust broom angle:

    1. Pull lever rearward to angle broom right.

    2. Push lever forward to angle broom left.

MX52301,00009F3-19-20150424
