Adjusting Brush Speed

  1. Avoid Injury! Operating attachment at high speed can cause objects to be thrown farther and faster.

    Use the slowest effective attachment speed to reduce risk of thrown objects.

    Increase throttle speed slightly if brush stalls frequently. Use correct brush type and travel speed to prevent stalling.

    MXT013712
    MXT013712-UN-19MAR15

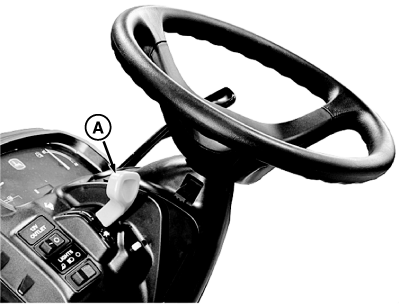

    Move throttle lever (A) to control brush speed.


  2. Push throttle lever forward to increase brush speed.

  3. Pull throttle lever rearward to decrease brush speed.

MX52301,00009F5-19-20150623
