Using Parking Stands

  1. Park machine safely (See Parking Safely in the SAFETY section).

  2. Start engine and raise broom

  3. MXT013711
    MXT013711-UN-16MAR15

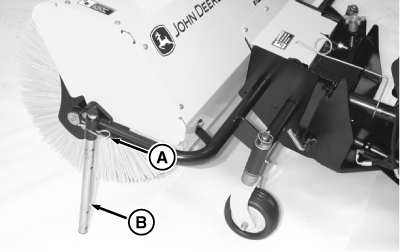

    Remove spring pin (A) from bracket on side of broom.



  4. Slide stand (B) to desired position and insert spring pin.

  5. Repeat for other side

MX52301,00009F8-19-20150424
