Replacing Shear Bolts


PTO Shaft Shear Bolt

  1. Park machine safely (See Parking Safely in the SAFETY section).

  2. Remove any remaining parts of broken or damaged shear bolt.

  3. Avoid damage! Broom uses two different shear bolt lengths and diameters. Use of wrong shear bolt can damage the gearbox.

    MXT014126
    MXT014126-UN-28APR15

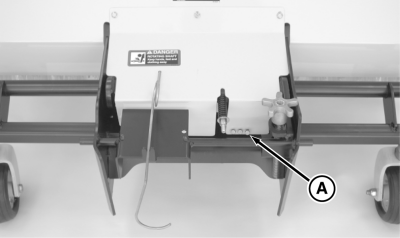

    Remove one 5.7 cm (2.25 in.) shear bolt (A) and locknut stored at back side of broom.



  4. MXT013690
    MXT013690-UN-13MAR15

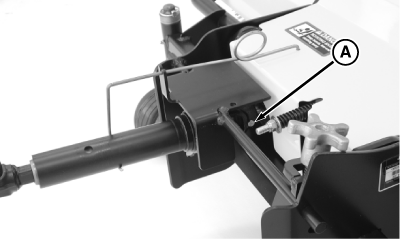

    Align hole in PTO shaft with hole in stubshaft.



  5. Install shear bolt (A) and locknut.


Brush Shaft Shear Bolt

  1. Park machine safely (See Parking Safely in the SAFETY section).

  2. MXT013732
    MXT013732-UN-16MAR15

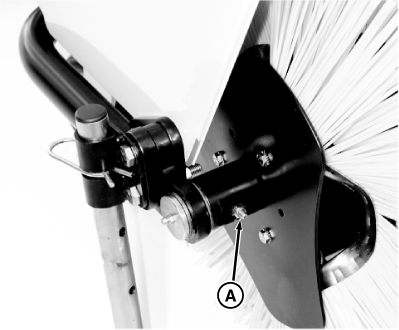

    Remove any remaining parts of broken or damaged shear bolt (A) on brush shaft ends.



  3. Install new shear bolt and locknut.
