Connecting PTO Shaft


Connecting PTO Shaft

  1. Avoid Injury! Stay clear of rotating PTO shafts. Stop the engine and be sure the PTO shaft is stopped before getting near it.

    Avoid Damage! Failure to lock the PTO shaft support into the storage position will cause damage to the PTO shaft and support.

    MXT013691
    MXT013691-UN-13MAR15

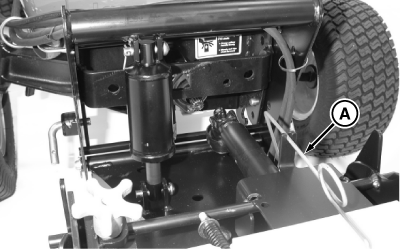

    Lift PTO shaft from PTO shaft support (A)


  2. MXT013692
    MXT013692-UN-13MAR15

    Place PTO shaft support (A) in storage position (B) as shown


  3. MXT013705
    MXT013705-UN-16MAR15

    Pull back collar (A) on PTO shaft coupler.


  4. Align coupler splines with splines on PTO output shaft (B). Slide coupler onto PTO output shaft until collar snaps back into locked position.

  5. Move PTO shaft forward and rearward to verify that it is locked in place.
