Install PTO Shaft

  1. Avoid damage! Broom is supplied with two sizes of shear bolts 6.4 cm (2.5 in.) and 5 cm (2 in.) for different applications. Do not use the 64 mm (2.5 in.) shear bolts with this PTO shaft.

    Use of wrong shear bolt can damage the gearbox.

    MXT014923
    MXT014923-UN-22JUN15

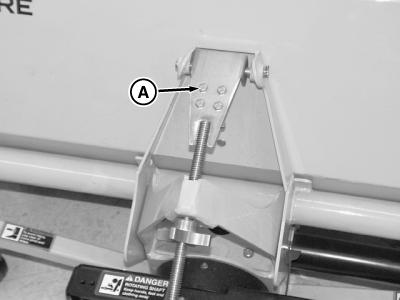

    Remove one 5 cm (2 in.) shear bolt and lock nut stored in brush contact adjustment assembly (A).


  2. MXT014924
    MXT014924-UN-23JUN15

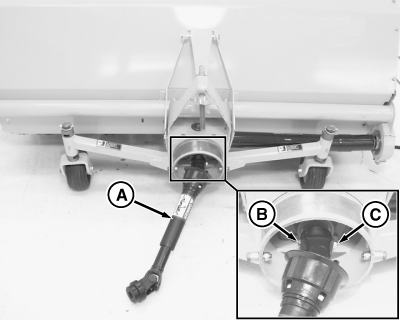

    Slide PTO shaft (A) onto broom stubshaft.


  3. Align holes in PTO shaft with holes in stubshaft. Install shear bolt (B) through holes with locknut (C). Tighten locknut completely.
