Install Broom Mounting Frame

  1. MXT014925
    MXT014925-UN-22JUN15

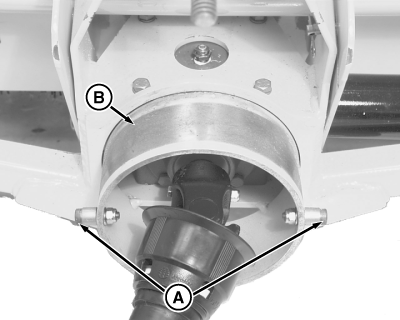

    Remove and retain hardware (A) installed in broom pivot collar (B).


  2. Apply grease to entire contact surface of pivot collar.

  3. MXT014926
    MXT014926-UN-22JUN15

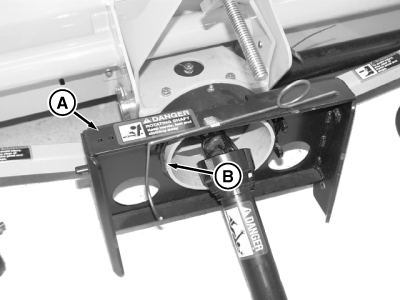

    Place mounting frame (A) over PTO shaft and onto broom pivot collar (B).


  4. MXT014927
    MXT014927-UN-22JUN15

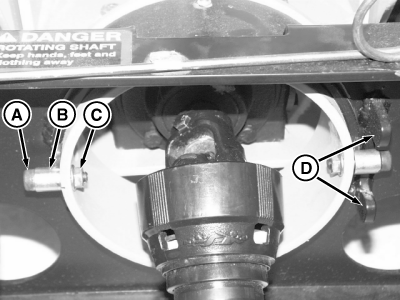

    Install shoulder bolt (A), spacer (B), and flange nut (C) at sides of pivot collar. Tighten nuts completely. Verify hardware at right side of collar is installed between mounting frame rotation stops (D).
