Broom Grease Locations

MXT013715
MXT013715-UN-29APR15

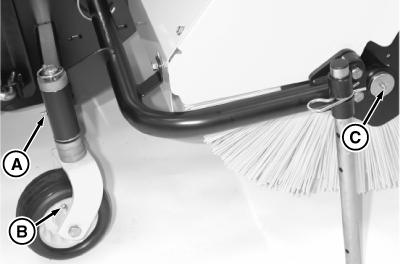

52 Broom

MXT014931
MXT014931-UN-22JUN15

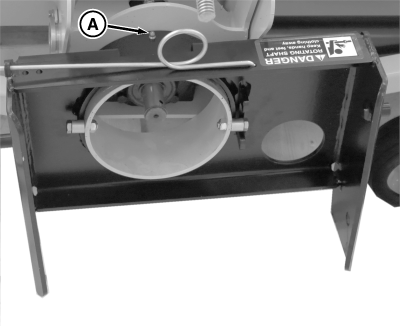

60 Broom

Lubricating Broom

  1. Lubricate grease fittings on both sides of broom with recommended grease.
  2. Spindles (A) on broom and optional thatching kit if installed.
  3. Wheel bearings (B) on broom and optional thatching kit if installed.
  4. Brush core bearings (C) (52 only).
  5. Broom collar (D) (60 only).

MX52301,0000B2C-19-20150611
