Replacing Brush Sections 52 Broom

Remove Old Brush Sections

1. Avoid damage! Replace brush sections when worn to 23 cm (9 in.) in diameter.

   Park machine safely (See Parking Safely in the SAFETY section).

2.

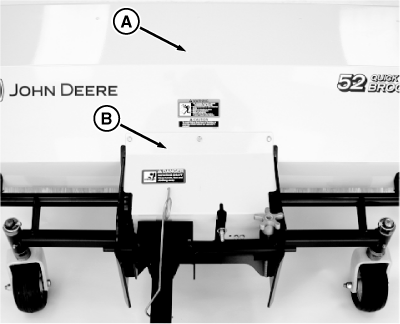

   MXT013723-UN-16MAR15

   Remove all screws in main shield (A). Remove main shield with gearbox shield (B).

---




3.

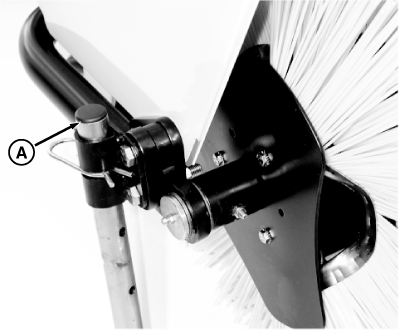

   MXT013724-UN-19MAR15

   Block broom or support broom with a suitable lifting device at area just behind parking stands (A).

---




4.

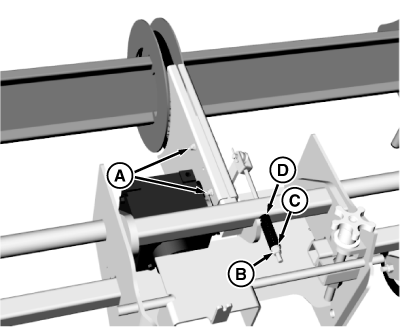

   MXT013725-UN-16MAR15

   Picture Note: Brush sections removed from core.

   Remove screws and locknuts (A) in chain guard. Remove chain guard.

---




5. Remove nut (B), washer (C), and spring (D) from idler tension screw.

6.
   MXT013726-UN-16MAR15

   Locate and remove master link retaining clip (A) on drive chain. Remove master link and chain.

---




7.

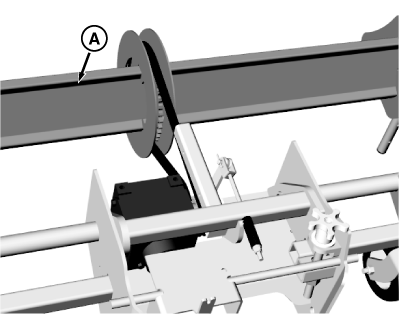

   MXT013727-UN-16MAR15

   Picture Note: Brush sections removed from core.

   Support core (A) near both ends with suitable lifting device.

---




8.

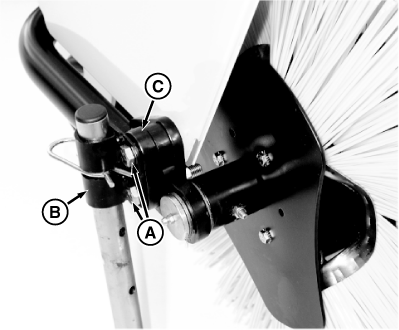

   MXT013728-UN-16MAR15

   Remove two screws (A) and nuts attaching parking stand to broom. Remove brackets (B) and spacer (C) on both sides of broom. Remove core with brush sections from broom.

---




9.
   MXT013730-UN-16MAR15

   Remove locknut (A) and shear bolt (B). Remove core pin (C), flange bearing (D), core retainer (E), thrust bearing (F), tube (G), and three screws (H). Remove retainer plate (I).

---




10. Avoid injury! Brush bristles can be sharp. Wear heavy gloves when handling the brush head.

    Remove brush sections from core.

Install New Brush Sections

1. Replace brush sections as needed in correct installation sequence

2.
   MXT013729-UN-16MAR15

   Picture Note: Brush sections shown installed on broom core.

   Twelve brush sections are installed on both sides of core. Note brush section installation sequence for each side:

   1. Slide first brush section onto core against inside retainer plate (A) as shown.

   2. Slide eleven additional brush sections onto core in an alternating pattern.

---




3.

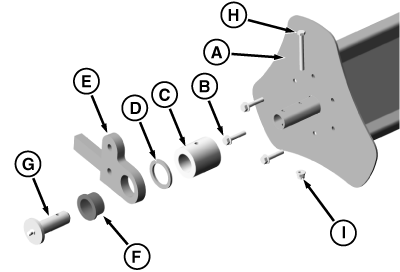

   MXT013731-UN-19MAR15

   Install retainer plate (A) on core with three screws (B).

---




4. Install tube (C), thrust bearing (D), core retainer (E), flange bearing (F), core pin (G), shear bolt (H), and locknut (I).

5.
   MXT013728-UN-16MAR15

   Install core onto broom. Install screws (A) to bracket (B), spacer (C), and core retainer with nuts.

---




6. Repeat for other side.

7.
   MXT013726-UN-16MAR15

   Install and connect drive chain with master link and retaining clip (A).

---




8.

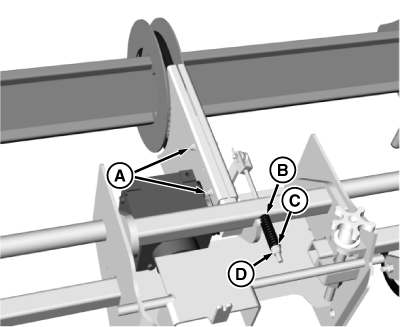

   MXT014128-UN-28APR15

   Picture Note: Brush sections removed from core.

   Install chain guard with screws and locknuts (A).

---




9. Install spring (B) onto idler tension screw with washer (C) and nut (D).

10.
    MXT013723-UN-16MAR15

    Install main shield (A) with gearbox shield (B).

---
